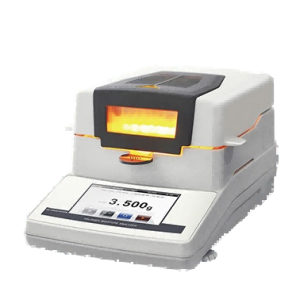

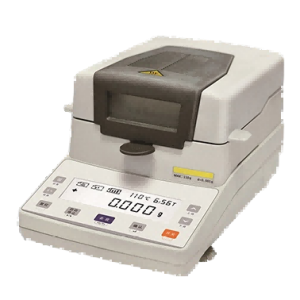

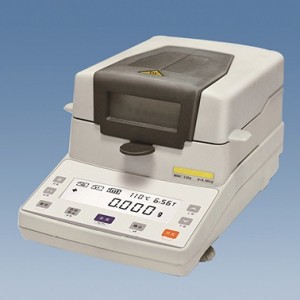

QF-MW水分测定仪
- 品牌： SO/赛欧华创
- 型号： QF-102MW
- 价格： 10615
QF-MW水分测定仪
特点 Feature
卤素灯加热 Halogen light heating
不锈钢加热腔体 Stainless steel chamber
温度/时间可调 Temperature and time can be set
百分比显示水分含量 The percentage of moisture content
百分比显示干燥余量 The percentage of dry residual
带背光大液晶屏 LCD with backlight
可记忆多组干燥进程 Store historical setting
技术参数Technicl parameters
|
产品型号 Model |
BF-110MW |
QF-105MW |
QF-102MW |
QF-100MW |
|||
|
最大称量 Range(g) |
110 |
110 |
110 |
110 |
|||
|
读数精度 Readability(g) |
0.01 |
0.005 |
0.002 |
0.001 |
|||
|
使用温度 Operating Temp.Range |
5°C---35°C |
||||||
|
显示屏 Display |
液晶 LCD |
||||||
|
校准方式 Calibration |
外部校准 External |
||||||
|
秤盘尺寸 Pan size（mm） |
Φ90 |
||||||
|
外观尺寸 Dimensions(W*L*H) |
200*180*380 |
||||||
|
产品重量 Weight(Kg) |
5.8 |
||||||
|
加热方式 Heat soure |
卤素灯 Halogen lamp |
||||||
|
温度感应器 Temp.sensor |
PT-100 |
||||||
|
温度范围 Temp.range |
40°C---199°C |
||||||
|
温度间隔 Temp.step |
1°C |
||||||
|
水分范围 Moisture range |
0.0%-100% |
0.00%---100% |
|||||
|
水分可读精度 Moisture readability |
0.1% |
0.01% |
0.01% |
0.01% |
|||
|
干燥剩余范围 Dry residual range |
100.00%---0.00% |
||||||
|
干燥剩余可读 Dry residual readability |
0.2% |
0.1% |
0.04% |
0.01% |
|||
|
ATRO |
100%---999% |
||||||
|
ATRO |
0%---999% |
||||||
|
温度设定 Temperature setting |
40°C---199°Cby1°Cstep |
||||||
|
时间设定 Time setting |
1---99min by 1s step |
||||||
|
自动停止 Autostop |
0.1%---9.9%within 1 min |
||||||
|
储存历史 Nuber of storage |
15 |
||||||
|
加热部分 Heater |
220V+15%50Hz 115V+15% 400W |
||||||
|
连接部分 |
R232接口 |
||||||
|
天平部分 Balance |
External power supply Output: 9V Lnput: 220V+15%50Hz |
||||||
